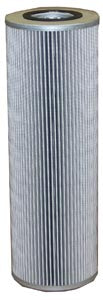

WH634-25B-260
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 6 | 2.63 | 2.63 | 34 |
Construction:
Buna, DOE, Water Absorbent
Beta Rating:
Beta 25[c] >= 1000 (ISO 16889 & DFE)
Gasket Material:
Buna
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Multilayer water absorbent
Gasket Type:
Flat
Handle:
No
Inner Core:
Electro-Tin Plated CS
Flow Direction:
OUT to IN
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 100 PSID
