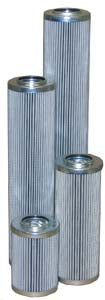

WH410-20-N5AMB
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 3.62 | 1.89 | 1.89 | 10.38 |
Construction:
Viton, O-Ring, DOE, Water Absorb
Beta Rating:
Beta 25{c} >= 1000 (ISO 16889 & DFE)
Gasket Material:
Viton
End Cap:
Plated CS
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Multilayer water absorbent
Gasket Type:
O-Ring
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 150 PSID
