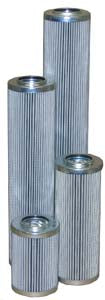

WH406-12-33DNB
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 3.6 | 1.984 | 0 | 6.4 |
Construction:
Water Absorbent, SOE, Buna O-Ring
Beta Rating:
Beta 12[c] >= 1000 (ISO 16889 & DFE)
Gasket Material:
Buna
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Multilayer water absorbent
Gasket Type:
O-Ring
Inner Core:
NONE
Flow Direction:
OUT to IN
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 150 PSID
