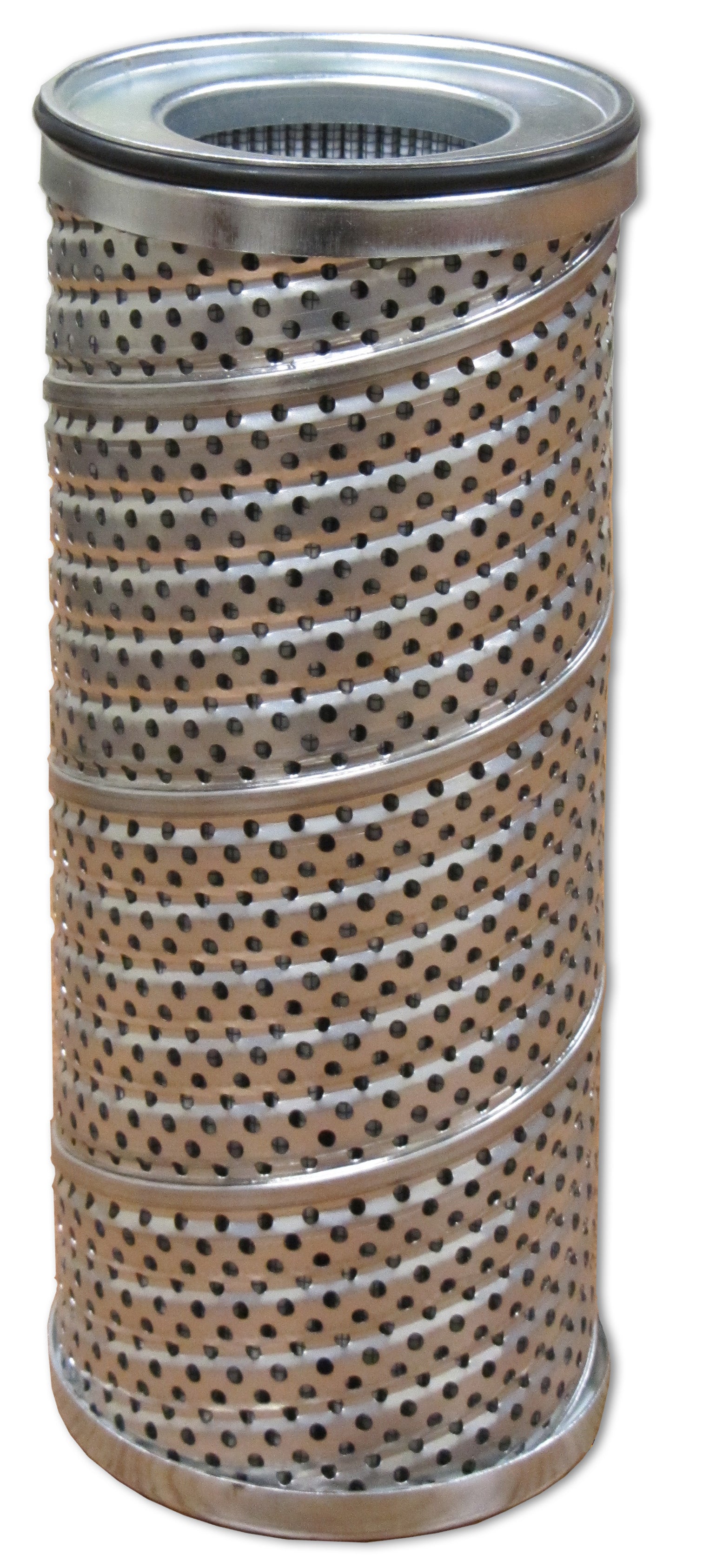

WH308-25-64V
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 3.38 | 1.96 | 0 | 8.2 |
Construction:
SOE, Viton, In to Out Flow, Water Removal
Beta Rating:
Beta 25{c} >= 1000 (ISO 16889 DFE)
Gasket Material:
Viton
End Cap:
Corrosion Resistant CS/AL
Outer Body:
Yes
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
NONE
Flow Direction:
IN to OUT
Operating Limits:
- Recommended Change Out: 35 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 150 PSID
