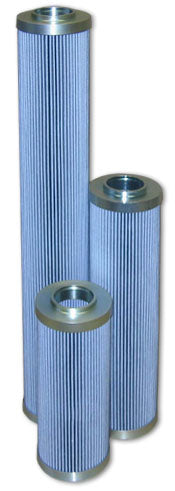

HY209-6-075NV
Dimensions: (Inches)
| O.D. | I.D. Bottom | O.A.L |
|---|---|---|
| 2.18 | 1.005 | 8.27 |
Construction:
Viton O-Ring, SOE
Beta Rating:
Beta 6{c} >= 1000 (ISO16889 & DFE)
Gasket Material:
Viton
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 225 °F
- Collapse Rating: 450 PSID
