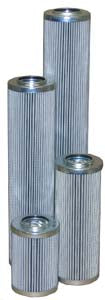

HY204-100W-44E
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 2.36 | 1.3 | 1.3 | 3.94 |
Construction:
EPR O-Ring, DOE
Nominal Efficiency:
100 Micron
Gasket Material:
EPR
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Stailess Steel Wire Mesh
Gasket Type:
O-Ring
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 450 PSID
