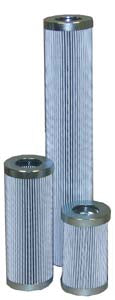

HY204-10-NRV
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 2.28 | 1.27 | 1.27 | 3.94 |
Construction:
DOE, Viton O-Ring
Beta Rating:
Beta 10{c} >= 1000 (ISO 16889 & DFE)
Gasket Material:
Viton
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Polyurethane
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 150 PSID
