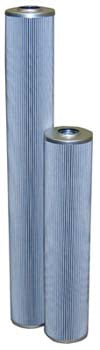

H409-3-1A
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 3.88 | 1.56 | 1.56 | 9 |
Construction:
Buna, Epoxy, Syn. Media
Nominal Efficiency:
3 Micron
Beta Rating:
Beta 20[c] = 75 (ISO 16889)
Gasket Material:
Buna
End Cap:
Corrosion Resistant CS/AL
Outer Body:
Perforated Electro-Tin Plated CS
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported one side
Media Area:
4.5 sq. ft.
Gasket Type:
Flat
Handle:
No
Inner Core:
Electro-Tin Plated CS
Flow Direction:
OUT to IN
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 75 PSID
