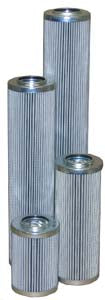

512-1/2-PLF
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 5.5 | 1.89 | 0 | 12.2 |
Construction:
SOE, Buna O-Ring
Nominal Efficiency:
0.5 Micron
Gasket Material:
Buna
End Cap:
Corrosion Resistant CS/AL
Outer Body:
Yes
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Phenolic Impregnated Cellulose
Gasket Type:
O-Ring
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 200 °F
- Collapse Rating: 75 PSID
