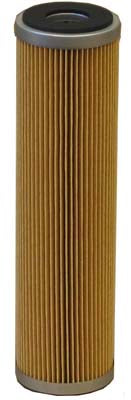

310-1-11
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 2.5 | 1.06 | 1.06 | 9.69 |
Construction:
Buna, W/O Body
Nominal Efficiency:
1 Micron
Gasket Material:
Buna
End Cap:
Corrosion Resistant CS/AL
Outer Body:
NONE
Adhesive:
Plastisol
By-Pass:
NONE
Media Type:
Phenolic Impregnated Cellulose
Media Area:
4.5 sq. ft.
Gasket Type:
Flat
Handle:
No
Inner Core:
Electro-Tin Plated CS
Flow Direction:
OUT to IN
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 75 PSID
